600W Pure sine wave power inverter Suppliers

Home / Product / Power Inverter / Pure Sine Wave Inverter / 600W Pure sine wave power inverter

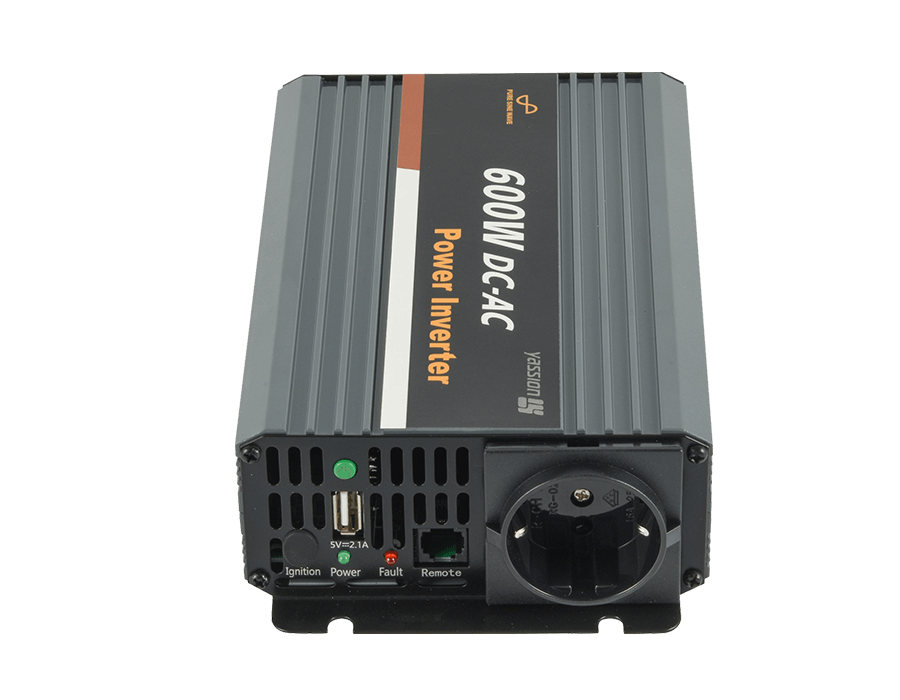

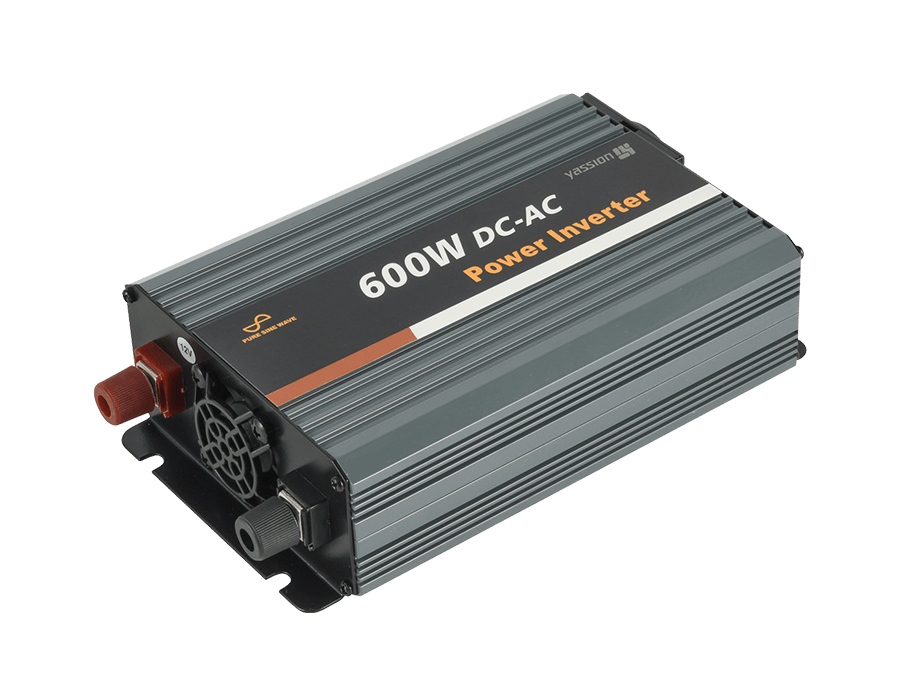

600W Pure sine wave power inverter
  • 600W Pure sine wave power inverter
  • 600W Pure sine wave power inverter
  • 600W Pure sine wave power inverter
Pure Sine Wave Inverter

600W Pure sine wave power inverter

600W Pure Sine Wave Power Inverter

● 600W continuous pure sine wave power and 1200W surge power

● Ultra- clean pure sine wave power. With less than 3% total harmonic distortion.

● The inverter is lighter and more compact than others with similar power ratings because they use high-frequency switching technology in the power conversion process.

● 12 months warranty.

More details and tips:

● Connect the inverter to a 12V battery with the standard cables provided with product, and plug your AC devices into the inverter

●  Please do not leave the power inverter in the ON position while your car is off.

● Disconnect the positive battery terminal before doing any wiring to the inverter

●  Do not put the inverter into sunlight directly, keep it in cool and dry environment


Protecion Features

● Over voltage and under voltage protection

● Over temperature and over load protection

● Short circuit and reverse polarity protection

What you will get

A 600w pure sine wave inverter, 2x battery cables (black and red), a user manual, A car ignition port and a set spare fuses.

Contact Now Catalogue Download

Description

The user manual of pure sine wave inverters

Specification - 600W Pure Sine Wave Inverter
Model: YX-0.6KS-1-2 YX-0.6KS-2-2 YX-0.6KS-1-1 YX-0.6KS-2-1
12V model 24V model 12V model 24V model
DC Input Nominal Voltage: 12.5Vdc 25.0Vdc 12.5Vdc 25.0Vdc
DC Input Voltage Operating range: 10.5-16Vdc 21-32Vdc 10.5-16Vdc 21-32Vdc
DC Nominal Current at Full  load: 56Adc 26Adc 56Adc 26Adc
AC Output Operating Voltage Options: 230Vac 120Vac
AC Output waveform: True Sine wave
Continuous AC Output Power: 600W
Continuous AC Output Current: 2.6A 5.0A
Frequency: 50HZ 60HZ
Surge Power: 1200W
Peak Efficiency: 92% 93% 92% 93%
Full Load Efficieny: ≧88% ≧89% ≧88% ≧89%
AC Output Waveform(THD): ≦5.0%
No load Current: ≦1.0A ≦0.5A ≦1.0A ≦0.5A
Inver Off-Input Current: ≦0.5mA
USB Port: 5V / 2.1A
Ignition Control: Feature to turn inverter on/off via a 12Vdc signal and to minimize battery drain by switching the inverter off when the ignition key is turn off.
Protection Function: Under voltage protection, over voltage protection, over load protection, over temperature protection, short circuit protection, reverse polarity protection
Operating Temperature Range: -20ºC -- 60ºC
Storage Temperature Range: -40ºC -- 70ºC
Operating Humidity Range: 5 to 95 %RH, non-condensing
Net Weights: 1.2KG
Demensions LxWxH: 210x120x52mm
Cooling Way: Intelligent cooling fan
Warranty: 12months
Remote Panel (parts selection matching): Can show DC input voltage, AC output power, AC output voltage and error codes.
