Battery Charger

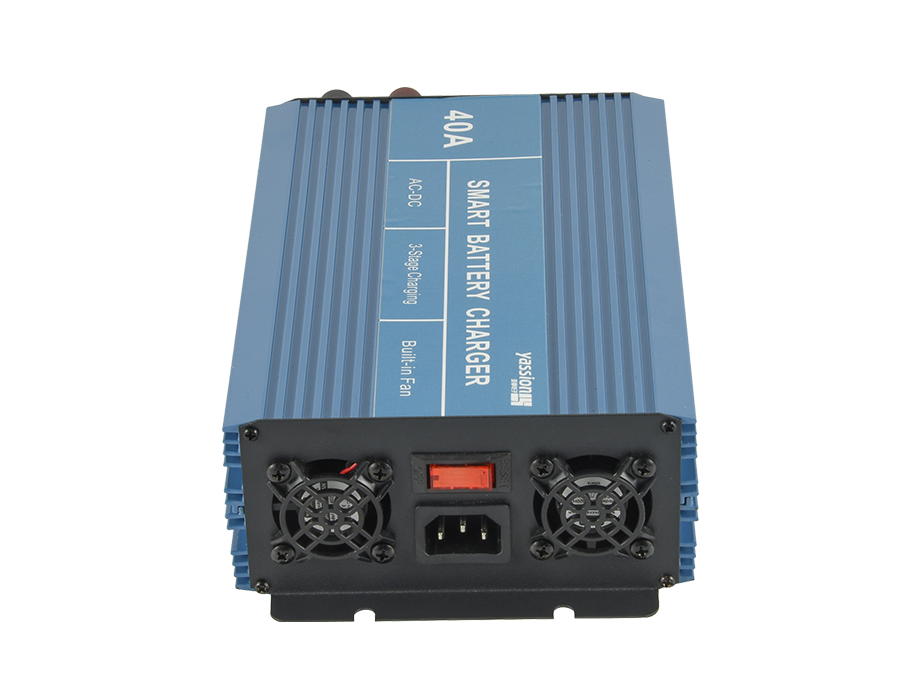

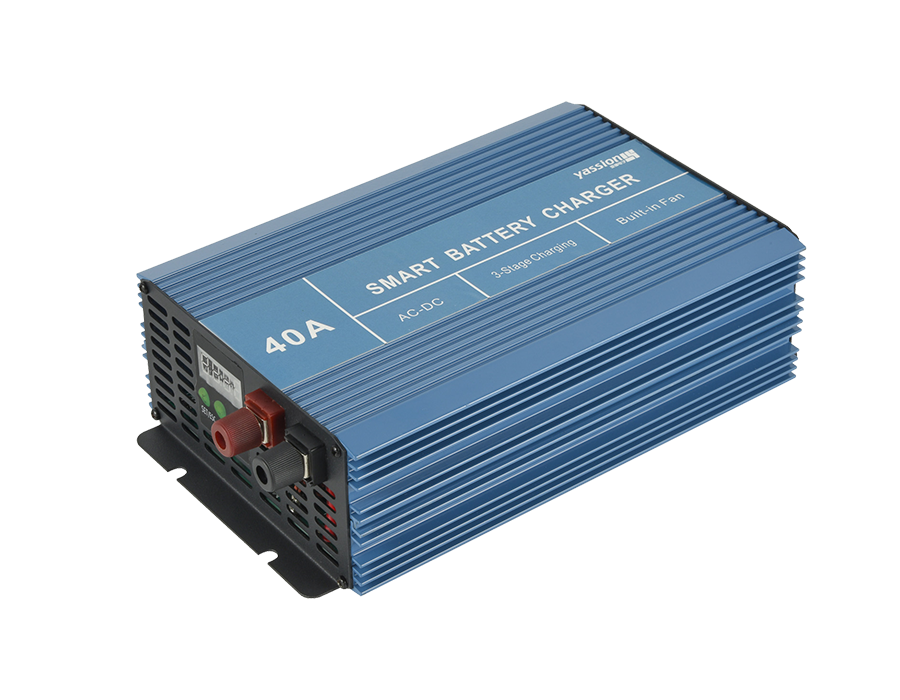

40A Battery charger

Description

Specification of YX-DC-40A
Model		YX-DC-40A
AC Input	Rated AC Input Voltage	110-220VAC
	AC Input Range	90VAC-265VAC
	AC Input Frequency	50/60Hz ± 3Hz
	Input Over Current Protection	10A (Thermal Protection Switch)
DC Output	Charging Voltage	8VDC-14.9VDC (Can be set)
	Charging Current	5-40A (Can be set)
	Connection Mode	Wiring Terminal
	Cooling Method	Smart Fan
	Efficiency	Full Load > 92%
	Power Factor	PF > 97%
Display	Show output DC voltage, DC current, charging time, battery capacity and internal temperature
Size	LWH	245mm150mm70mm

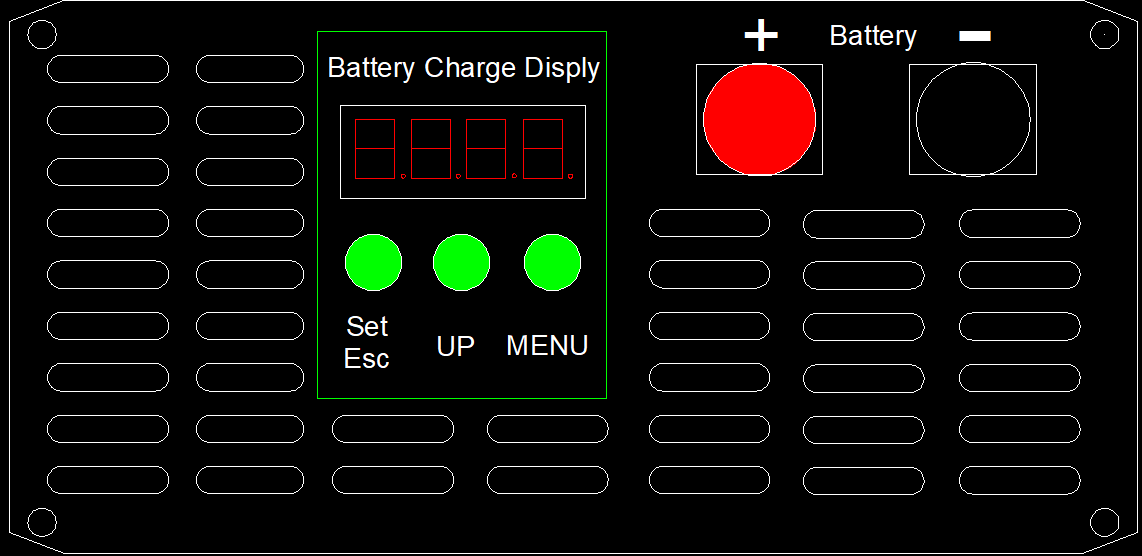

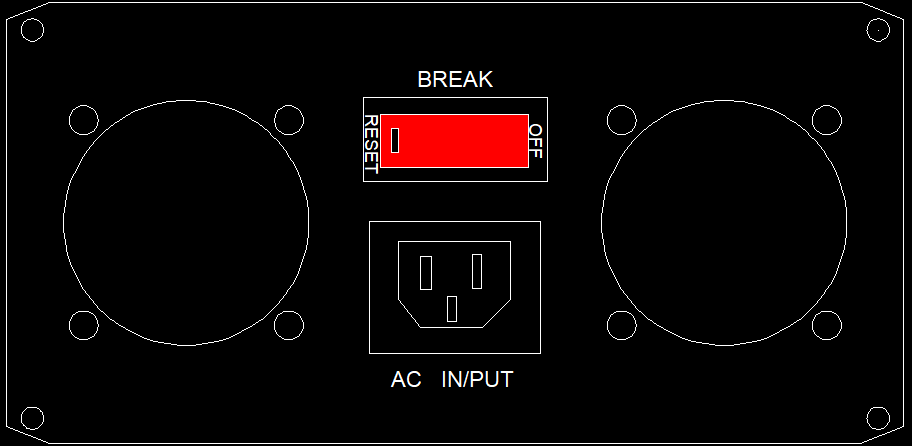

(Figure 1: AC Input Panel)		(Figure 2: DC Output Panel)
