500W Portable Power Station

500W Portable Power Station

1. Big capacity 144000mAh 486wh, AC output power 500w.

2. Ternary lithium battery is more effificient and portable

3. Support 13-40V solar panel charging.

4. Support charg when discharging.

5. Wireless charging 10W.

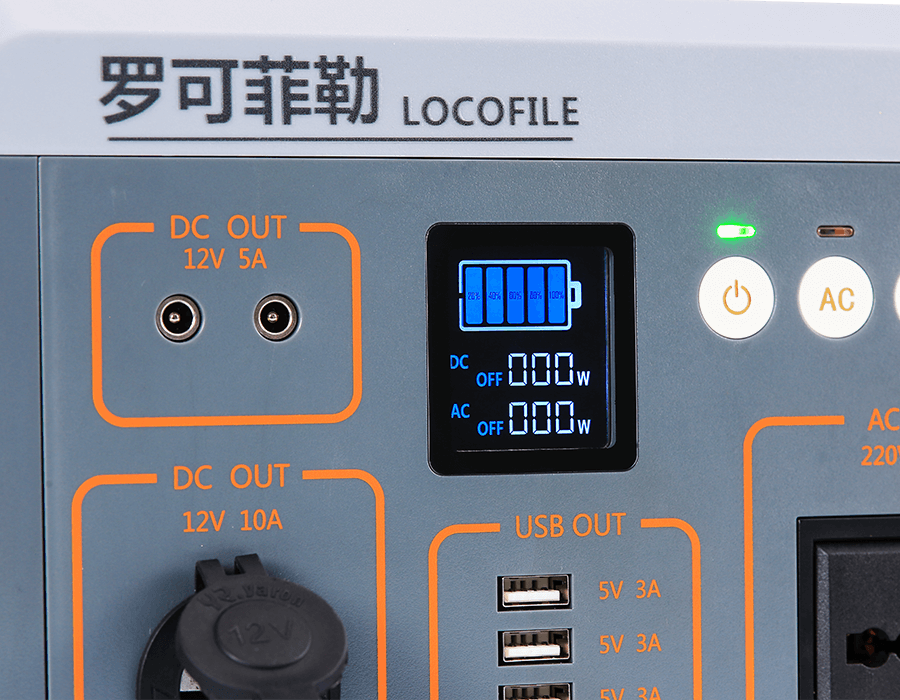

6. Smart LCD screen with real-time working status shown.

7. Super compact design with smaller size and lighter weight than that of same Wh/W in the market, easy to carry and save shipping cost to some extent.

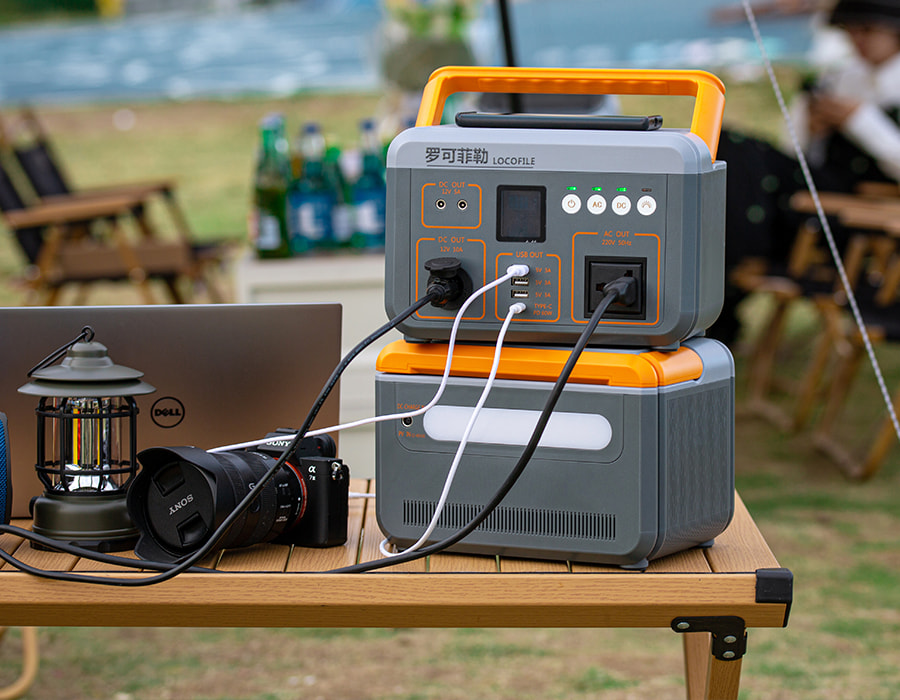

8. Perfect power partner for caravan, camping, power tools, emergency, maintance, medical, parties, home electric appliances ect.

Contact Now

Catalogue Download

Description

Item No.	LFCN500
AC Output	Output Voltage	230V / 120V
	Frequency	50Hz / 60Hz
	Efficiency	＞90%
	Maximum Output Power	500W
	Output Waveform	Pure Sine Wave Output
	Overcurrent Protection	Yes
	Over Temperature Protection	Yes

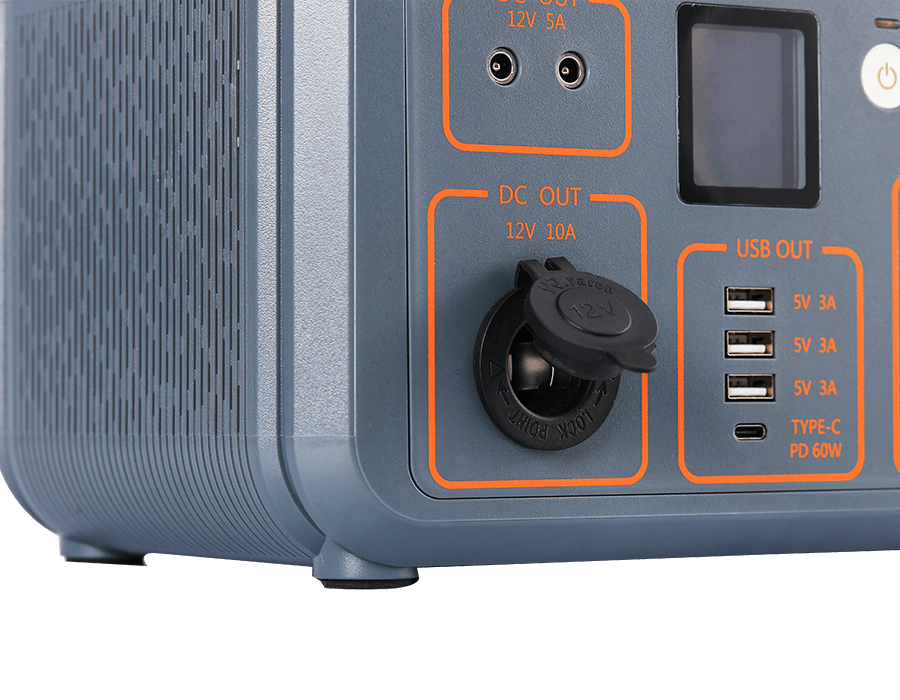

DC Output	2 x DC-PORT (5.5*2.1)	DC12V/5A (Anti-reverse polarity and short circuit protection)
	1 x Cigarette Lighter Output	DC12V Max 10A ( Anti-reverse polarity and short circuit protection)
	3 x USB-A	5V/3A 15W
	1 x TYPE-C	PD3.0 5-20V 60W (MAX)
	Wireless Charging	10W
	Maximum Output Power	220W
Total Output	Maximum Output Power	550W
Battery	Battery Type	Ternary lithium ion battery
	Battery Power	532.8WH
	Battery Capacity	144000mAH
	Battery Voltage	11.1V
	Battery Ah	48AH
	Cycle Life	800 times charge-discharge cycles; DOD≥80%

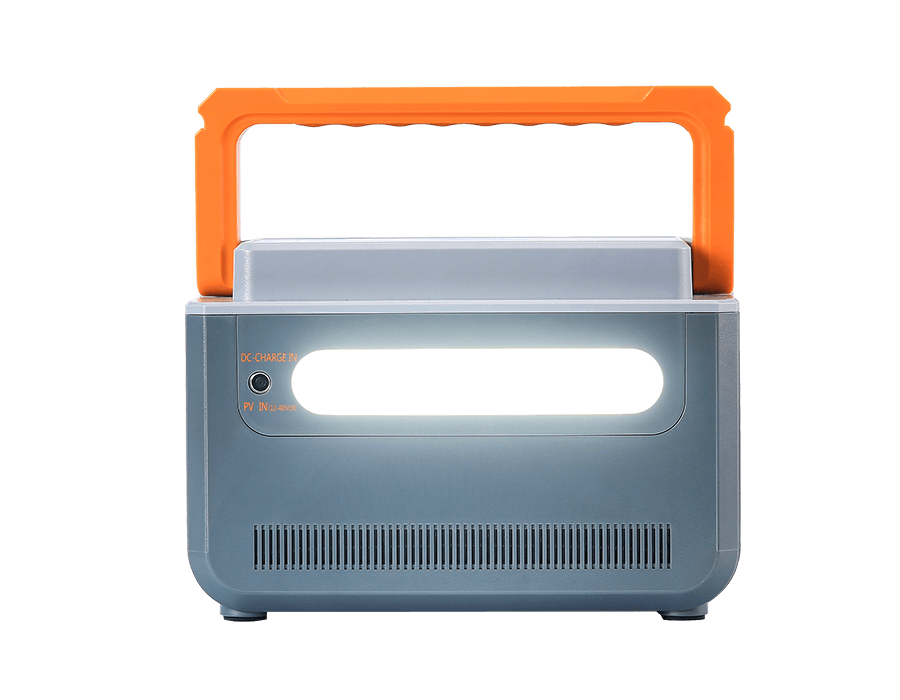

LED Light	High	5W
	Medium	3W
	SOS	Sharp flash
DC Input Charging （Anti-reverse polarity design）	AC Adapter Charging	External 5A adapter (full charging time: ≈ 5 hours)
	Car Input Charging	DC 12V~24V/120W Max (full charging time: ≈ 5 hours)
	120W Solar Panel Input Charging	Input voltage range 13V-40VDC (full charging time: ≈ 6 hours)
Charge While Discharge		Support
Protection Function	Battery Over Voltage Protection	12.6V±0.2V
	Battery Low Voltage Protection	8.9V±0.2V
	Battery Low Temperature Protection	Charge：≤ 0℃; Discharge: ≤ -10℃
	Battery Charge Over Temperature Protection	45℃±3℃
	Battery Discharge Over Temperature Protection	60℃ ±3℃
	Battery Over Current Protection 1	80A, ＜1.2S
	Battery Over Current Protection 2	320A, ＜100 ms
	Battery Short Circuit Protection	＜280us
	AC Output Short Circuit Protection	＜50ms
	AC Output Over Load Protection	＞500W, 5-10S
	USB Over Current Protection	3.3±0.2A
	TYPE-C Over Current Protection	3.5±0.2A
	Car Charging Over Current Protection	10A±2A
	DC5.5 Over Current Protection	5A±1A
Operation temperature		Charge: 0℃～45℃; Discharge: -10℃～40℃
Product Size		L260×W186×H175mm
Product Weight		5.2KG±0.2KG
Certification		CE, FCC, ROHS
Accessories		1 x AC Power Adapter; 1 x Car Cigarette Cable; 1 x User manual
