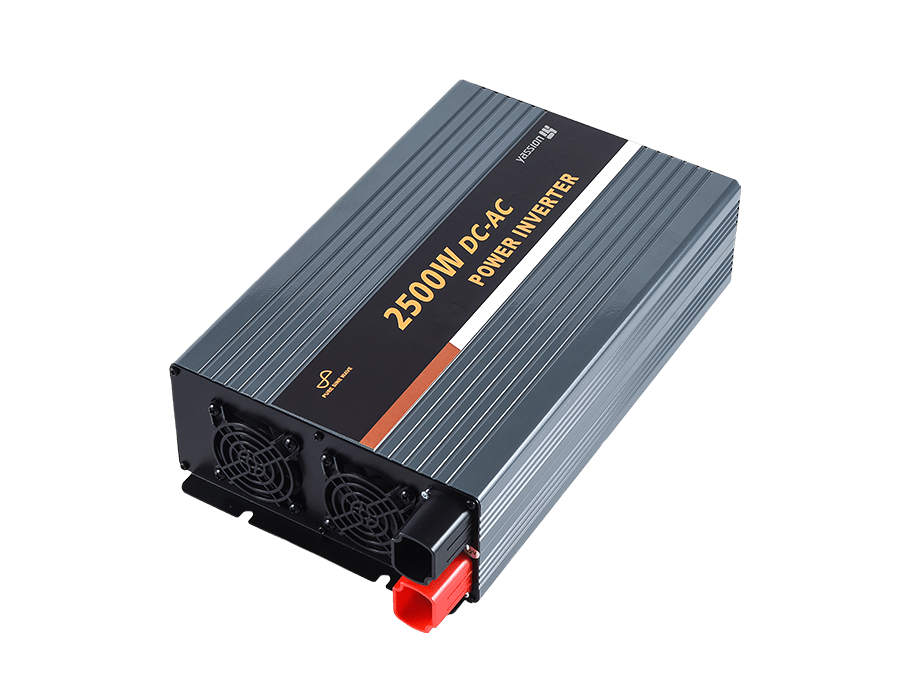

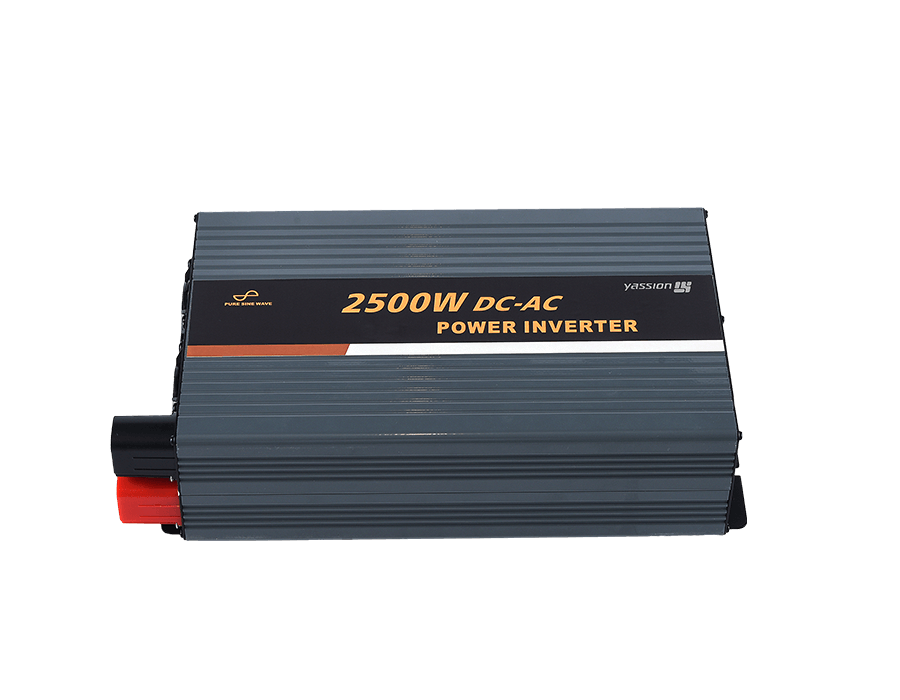

2500W Multiple Protection LCD Display Pure Sine Wave Off-Grid Inverter
  • 2500W Multiple Protection LCD Display Pure Sine Wave Off-Grid Inverter
  • 2500W Multiple Protection LCD Display Pure Sine Wave Off-Grid Inverter
  • 2500W Multiple Protection LCD Display Pure Sine Wave Off-Grid Inverter
Pure Sine Wave Inverter

2500W Multiple Protection LCD Display Pure Sine Wave Off-Grid Inverter

2500W Pure Sine Wave Off-grid Inverter

● 2500W Continuous pure sine wave power and 5000W surge power.

● Ultra- clean pure sine wave power. With less than 3% total harmonic distortion.

● The inverter is lighter and more compact than others with similar power ratings because they use high-frequency switching technology in the power conversion process.

● Digital display shows the DC voltage, AC voltage, output power and some protection codes when inverter is in protection mode.

● Power saving mode can be selectable.

● 18 months warranty.



Protecion Features

● Over voltage and under voltage protection

● Over temperature and over load protection

● Short circuit and reverse polarity protection

What you will get

A 2500w pure sine wave inverter, 2x battery cables (black and red), a user manual, A car ignition port and a set spare fuses.

Contact Now Catalogue Download

Description

The user manual of pure sine wave inverters

Our 2500W Multiple Protection LCD Display Pure Sine Wave Off-Grid Inverter is an efficient and reliable power solution designed to meet the needs of a variety of high-power appliances. It provides 2500W of continuous pure sine wave power output and a peak power of up to 5000W, ensuring that you are not restricted when using high-power devices. Its pure waveform and total harmonic distortion rate of less than 3% can effectively protect your electrical equipment, ensure its stable operation and extend its service life.
Using advanced high-frequency switching technology, our inverter has further reduced its size while maintaining excellent performance, making it lighter and more compact, easy to carry and install. The digital LCD display monitors key parameters such as DC voltage, AC voltage and output power in real time, allowing users to grasp the working status of the inverter at any time, ensuring efficiency and safety during use.
In order to ensure the safety of users and the stable operation of equipment, our 2500W Multiple Protection LCD Display Pure Sine Wave Off-Grid Inverter has built-in multiple protection mechanisms, including overload protection, short circuit protection and over-temperature protection. These protection measures can automatically start in various abnormal situations to ensure the safe operation of the equipment. When the inverter enters protection mode, the LCD display will display the corresponding protection code to help users quickly troubleshoot faults and reduce downtime.
In addition, we have specially designed an optional power saving mode to further reduce standby power consumption and achieve high efficiency and energy saving. We are well aware of the importance of product quality to users, so we provide this product with a warranty service of up to 18 months, so that you can feel more at ease during use.

Model: YX-2.5KS-1-1 YX-2.5KS-2-1 YX-2.5KS-1-2 YX-2.5KS-2-2
Continuous Power: 2500W
Peak Power: 4900W
DC Voltage: DC12V DC24V DC12V DC24V
AC Voltage: 100VAC or 110VAC or 120VAC ± 3V  220VAC or 230VAC or 240VAC ± 3V
No Load Current Draws: 1A 0.5A 1A 0.5A
DC Voltage Range: 10-15.5V 20-31V 10-15.5V 20-31V
Low Voltage Alarm: Lo0:10.5V 11V±0.3V Lo0:21V 22V±0.3V Lo0:10.5V 11V±0.3V Lo0:21V 22V±0.3V
Lo1:10.8V 11.3V±0.3V Lo1:21.6V 22.6V±0.3V Lo1:10.8V 11.3V±0.3V Lo1:21.6V 22.6V±0.3V
Lo2:11.3V 11.8V±0.3V Lo2:22.6V 23.6V±0.3V Lo2:11.3V 11.8V±0.3V Lo2:22.6V 23.6V±0.3V
Low Voltage Shut Down: Lo0:10.5V 10.5V±0.3V Lo0:21V 21V±0.3V Lo0:10.5V 10.5V±0.3V Lo0:21V 21V±0.3V
Lo1:10.8V 10.8V±0.3V Lo1:21.6V 21.6V±0.3V Lo1:10.8V 10.8V±0.3V Lo1:21.6V 21.6V±0.3V
Lo2:11.3V 11.3V±0.3V Lo2:22.6V 22.6V±0.3V Lo2:11.3V 11.3V±0.3V Lo2:22.6V 22.6V±0.3V
Low Voltage Alarm Recovery: Lo0:10.5V 11.3V±0.3V Lo0:21V 22.6V±0.3V Lo0:10.5V 11.3V±0.3V Lo0:21V 22.6V±0.3V
Lo1:10.8V 11.6V±0.3V Lo1:21.6V 23.2V±0.3V Lo1:10.8V 11.6V±0.3V Lo1:21.6V 23.2V±0.3V
Lo2:11.3V 12.1V±0.3V Lo2:22.6V 24.2V±0.3V Lo2:11.3V 12.1V±0.3V Lo2:22.6V 24.2V±0.3V
Low Voltage Protection Recovery: Lo0:10.5V 12V±0.3V Lo0:21V 24V±0.3V Lo0:10.5V 12V±0.3V Lo0:21V 24V±0.3V
Lo1:10.8V 12.3V±0.3V Lo1:21.6V 24.6V±0.3V Lo1:10.8V 12.3V±0.3V Lo1:21.6V 24.6V±0.3V
Lo2:11.3V 12.8V±0.3V Lo2:22.6V 25.6V±0.3V Lo2:11.3V 12.8V±0.3V Lo2:22.6V 25.6V±0.3V
Over Voltage Shut Down: 15.7V±0.3V 31.5V±0.3V 15.7V±0.3V 31.5V±0.3V
Over Voltage Recovery: 15.3V±0.3V 30.6V±0.3V 15.3V±0.3V 30.6V±0.3V
Frequency: 50HZ ± 0.5HZ or 60HZ ± 0.5HZ
Output Waveform: Pure Sine Wave
AC Regulation: THD<3% (Linear load)
Output Efficiency: Up to 90%
Remote Control (Optional): Cable length: 15m is available.
Power-Saving Mode: The power saving mode will be activated when the output power is less than 5W. When output power is more than 10W, the inverter will automatically return to normal status.
Ignition Function: Connect vehicles battery (or connect positive pole of vehicles' STARTER). The inverters start simultaneously When the vehicles start; The inverters will shut down meantime when the vehicles shut down.
Protection Function: Low voltage alarm code: F05 Buzzer sounds and fault light turns red
Low voltage shutdown code: F01 Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.)
Over input voltage protection code: F02 Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.)
Over load alarm code: F06 Buzzer sounds and fault light turns red when output power is overloaded around 110%.  But the BUZZ and F06 code will not occured when the output power drop to a normal level within 20ms.
Over load protection code: F03 The inverter shutdown when output power is overloaded around 120%, it need to be recovered by hand.
Over temperature alarm code: F07 Buzzer sounds and fault light turns red when the inverter's internal temperature is higher than the limit value (90±5℃).
Over temperature protection code: F04 The inverter will automatically return to normal status when the internal temperature drops to 80±5℃.
code: F08 The display will show the code F08 when the thermostat in the inverters is broken
Short circuit protection code:  F03 Recover by hand
Reverse polarity protection Built-in fuse
AC input overload protection code: F09 The fan will start to work when the relay temperature is up to 60±5℃; but it will stop to work when the relay temperature drops to 50±5℃. The unit will alarm, and no AC output when relay temperature is up to 75±5℃; But it will auto recover when the relay temperature drops to normal value.
Fuse: Internal  USB port  5V, 2.1A
Working Temperature: -10°C--+50°C Product Size 351×197×82mm
Storage Temperature: -30°C--+70°C Packing Size 41×26×14cm
Warranty: 18 months N.W. / G.W. (KG) 4.5KG/5.2KG
Start: Bipolar soft-start Quantity / Carton 4pcs
Cooling Way: Intelligent cooling fan Carton Size 52×42×30cm
Certification: CE, E-mark, FCC Carton Weight 22.0KG
