Pure Sine Wave Inverter

500W Pure sine wave car plug inverter

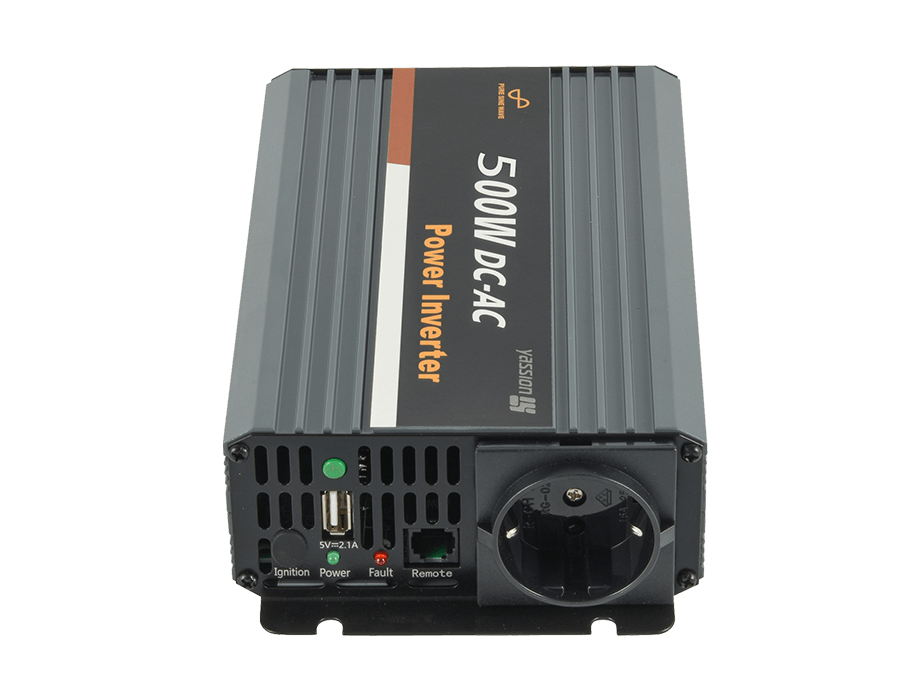

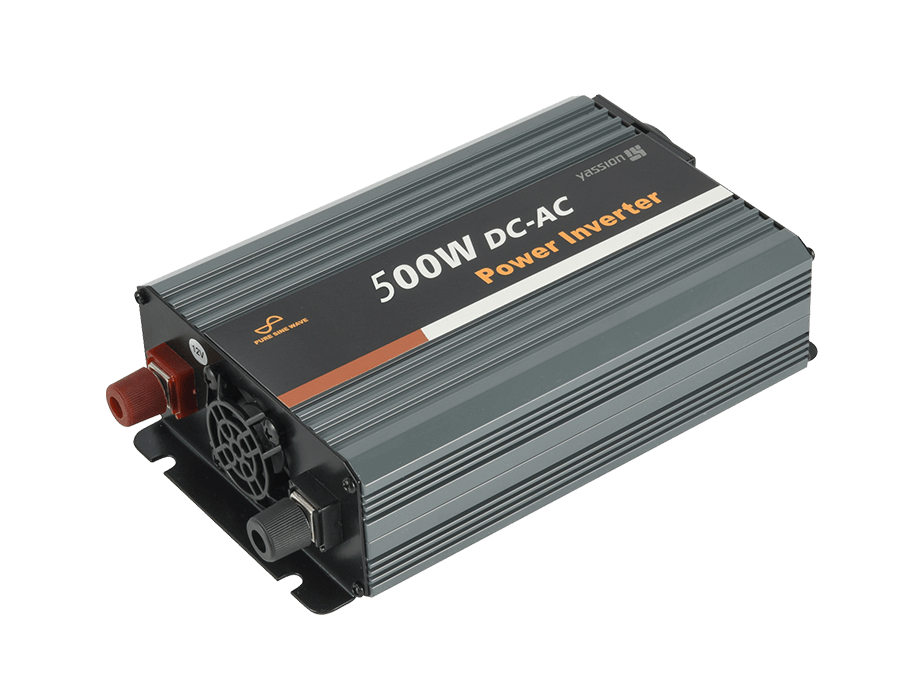

500W Pure Sine Wave Car Plug Inverter

● 500W continuous pure sine wave power and 1000W surge power

● Ultra- clean pure sine wave power. With less than 3% total harmonic distortion.

● The inverter is lighter and more compact than others with similar power ratings because they use high-frequency switching technology in the power conversion process.

● 12 months warranty.

The 500W pure sine wave inverter designed with advanced isolated input and output tech. Fully protect your devices by its Over voltage,Low voltage,Overload,Short circuit,Over heat protections. Strong and Durable aluminum alloy housing provides advanced protection from drops and bumps. Integrated cooling fan helps reduce heat and prevents shortages.

Protecion Features

● Over voltage and under voltage protection

● Over temperature and over load protection

● Short circuit and reverse polarity protection

What you will get

A 500w pure sine wave inverter, 2x battery cables (black and red), a user manual, A car ignition port and a set spare fuses.

Contact Now

Catalogue Download

Description

The user manual of pure sine wave inverters

Specification - 500W Pure Sine Wave Inverter


Model:	YX-0.5KS-1-2	YX-0.5KS-2-2	YX-0.5KS-1-1	YX-0.5KS-2-1
Model:	12V model	24V model	12V model	24V model
DC Input Nominal Voltage:	12.5Vdc	25.0Vdc	12.5Vdc	25.0Vdc
DC Input Voltage Operating range:	10.5-16Vdc	21-32Vdc	10.5-16Vdc	21-32Vdc
DC Nominal Current at Full load:	56Adc	26Adc	56Adc	26Adc
AC Output Operating Voltage Options:	230Vac		120Vac
AC Output waveform:	True Sine wave
Continuous AC Output Power:	500W
Continuous AC Output Current:	2.1A		4.2A
Frequency:	50HZ		60HZ
Surge Power:	1000W
Peak Efficiency:	92%	93%	92%	93%
Full Load Efficieny:	≧88%	≧89%	≧88%	≧89%
AC Output Waveform(THD):	≦5.0%
No load Current:	≦1.0A	≦0.5A	≦1.0A	≦0.5A
Inver Off-Input Current:	≦0.5mA
USB Port:	5V / 2.1A
Ignition Control:	Feature to turn inverter on/off via a 12Vdc signal and to minimize battery drain by switching the inverter off when the ignition key is turn off.
Protection Function:	under voltage protection, over voltage protection, over load protection, over temperature protection, short circuit protection, reverse polarity protection
Operating Temperature Range:	-20ºC -- 60ºC
Storage Temperature Range:	-40ºC -- 70ºC
Operating Humidity Range:	5 to 95 %RH, non-condensing
Net Weights:	1.2KG
Demensions LxWxH:	210x120x52mm
Cooling Way:	Intelligent cooling fan
Warranty:	12months
Remote Panel (parts selection matching):	Can show DC input voltage, AC output power, AC output voltage and error codes.
