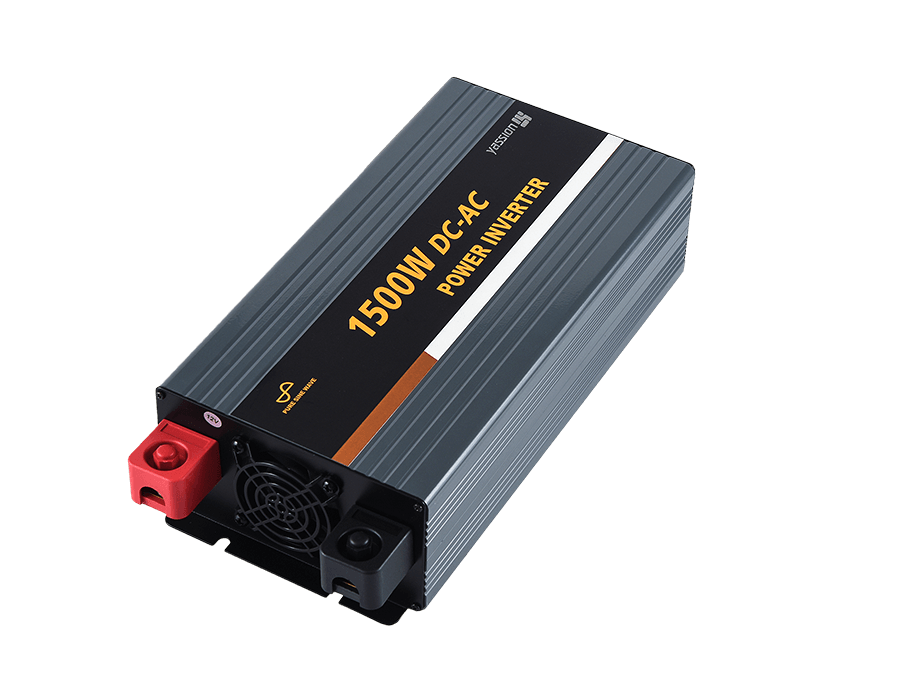

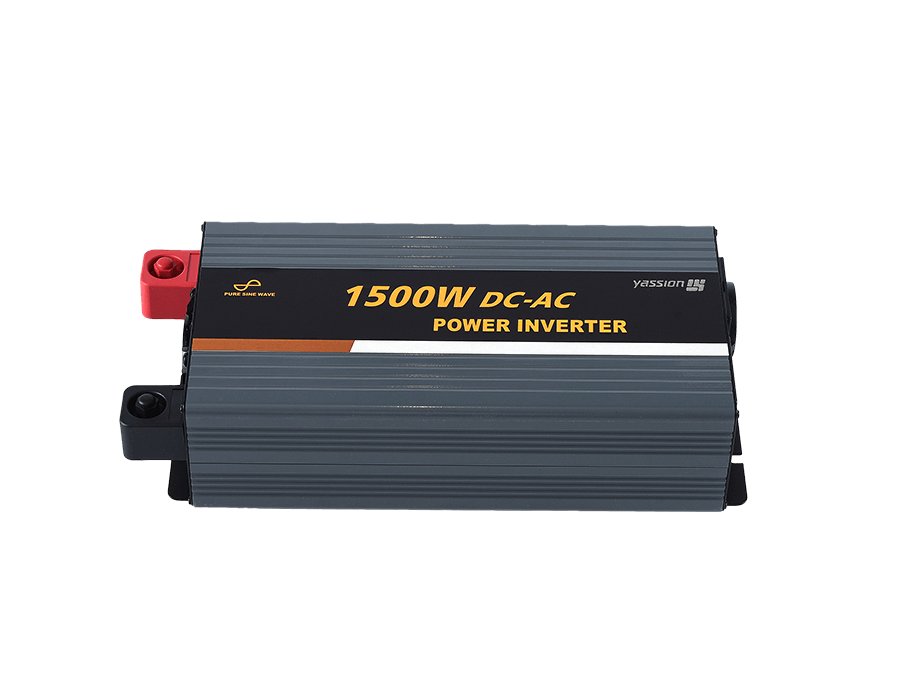

1500W Pure sine wave inverter
  • 1500W Pure sine wave inverter
  • 1500W Pure sine wave inverter
  • 1500W Pure sine wave inverter
Pure Sine Wave Inverter

1500W Pure sine wave inverter

1500W Pure Sine Wave Inverter

● 1500W Continuous pure sine wave power and 3000W surge power.

● Ultra- clean pure sine wave power. With less than 3% total harmonic distortion.

● The inverter is lighter and more compact than others with similar power ratings because they use high-frequency switching technology in the power conversion process.

● Digital display shows the DC voltage, AC voltage, output power and some protection codes when inverter is in protection mode.

● Power saving mode can be selectable.

● 18 months warranty.

1500W Pure Sine Wave Inverter converts DC 12V to AC 110V output. It provides 1500 watts of continuous AC power to keep it running for your laptops, TV, fans, heater, electric grill etc. Perfect for a nice picnic or road trip, using in boats or permanent use in a solar power setup, ideal for charging household appliances, pumps and motors when camping. It is an emergency power supply solution when you are in outdoor & remote work site.

Protecion Features

● Over voltage and under voltage protection

● Over temperature and over load protection

● Short circuit and reverse polarity protection

What you will get

A 1500w pure sine wave inverter, 2x battery cables (black and red), a user manual, A car ignition port and a set spare fuses.

Contact Now Catalogue Download

Description

The user manual of pure sine wave inverters

Model: YX-1.5KS-1-1 YX-1.5KS-2-1 YX-1.5KS-1-2 YX-1.5KS-2-2
Continuous Power: 1500W
Peak Power: 2900W
DC Voltage: DC12V DC24V DC12V DC24V
AC Voltage: 100VAC or 110VAC or 120VAC ± 3V  220VAC or 230VAC or 240VAC ± 3V
No Load Current Draws: 1A 0.5A 1A 0.5A
DC Voltage Range: 10-15.5V 20-31V 10-15.5V 20-31V
Low Voltage Alarm: Lo0:10.5V 11V±0.3V Lo0:21V 22V±0.3V Lo0:10.5V 11V±0.3V Lo0:21V 22V±0.3V
Lo1:10.8V 11.3V±0.3V Lo1:21.6V 22.6V±0.3V Lo1:10.8V 11.3V±0.3V Lo1:21.6V 22.6V±0.3V
Lo2:11.3V 11.8V±0.3V Lo2:22.6V 23.6V±0.3V Lo2:11.3V 11.8V±0.3V Lo2:22.6V 23.6V±0.3V
Low Voltage Shut Down: Lo0:10.5V 10.5V±0.3V Lo0:21V 21V±0.3V Lo0:10.5V 10.5V±0.3V Lo0:21V 21V±0.3V
Lo1:10.8V 10.8V±0.3V Lo1:21.6V 21.6V±0.3V Lo1:10.8V 10.8V±0.3V Lo1:21.6V 21.6V±0.3V
Lo2:11.3V 11.3V±0.3V Lo2:22.6V 22.6V±0.3V Lo2:11.3V 11.3V±0.3V Lo2:22.6V 22.6V±0.3V
Low Voltage Alarm Recovery: Lo0:10.5V 11.3V±0.3V Lo0:21V 22.6V±0.3V Lo0:10.5V 11.3V±0.3V Lo0:21V 22.6V±0.3V
Lo1:10.8V 11.6V±0.3V Lo1:21.6V 23.2V±0.3V Lo1:10.8V 11.6V±0.3V Lo1:21.6V 23.2V±0.3V
Lo2:11.3V 12.1V±0.3V Lo2:22.6V 24.2V±0.3V Lo2:11.3V 12.1V±0.3V Lo2:22.6V 24.2V±0.3V
Low Voltage Protection Recovery: Lo0:10.5V 12V±0.3V Lo0:21V 24V±0.3V Lo0:10.5V 12V±0.3V Lo0:21V 24V±0.3V
Lo1:10.8V 12.3V±0.3V Lo1:21.6V 24.6V±0.3V Lo1:10.8V 12.3V±0.3V Lo1:21.6V 24.6V±0.3V
Lo2:11.3V 12.8V±0.3V Lo2:22.6V 25.6V±0.3V Lo2:11.3V 12.8V±0.3V Lo2:22.6V 25.6V±0.3V
Over Voltage Shut Down: 15.7V±0.3V 31.5V±0.3V 15.7V±0.3V 31.5V±0.3V
Over Voltage Recovery: 15.3V±0.3V 30.6V±0.3V 15.3V±0.3V 30.6V±0.3V
Frequency: 50HZ ± 0.5HZ or 60HZ ± 0.5HZ
Output Waveform: Pure Sine Wave
AC Regulation: THD<3% (Linear load)
Output Efficiency: Up to 90%
Remote Control (Optional): Cable length: 15m is available.
Power-Saving mode: The power saving mode will be activated when the output power is less than 5W. When output power is more than 10W, the inverter will automatically return to normal status.
Ignition Function: Connect vehicles battery (or connect positive pole of vehicles' STARTER). The inverters start simultaneously When the vehicles start; The inverters will shut down meantime when the vehicles shut down.
Protection Function: Low voltage alarm code: F05 Buzzer sounds and fault light turns red
Low voltage shutdown code: F01 Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.)
Over input voltage protection code: F02 Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.)
Over load alarm code: F06 Buzzer sounds and fault light turns red when output power is overloaded around 110%.  But the BUZZ and F06 code will not occured when the output power drop to a normal level within 20ms.
Over load protection code: F03 The inverter shutdown when output power is overloaded around 120%, it need to be recovered by hand.
Over temperature alarm code: F07 Buzzer sounds and fault light turns red when the inverter's internal temperature is higher than the limit value (90±5℃).
Over temperature protection code: F04 The inverter will automatically return to normal status when the internal temperature drops to 80±5℃.
Short circuit protection code:  F03 Recover by hand
Reverse polarity protection Built-in fuse
AC input overload protection code: F09 The fan will start to work when the relay temperature is up to 60±5℃; but it will stop to work when the relay temperature drops to 50±5℃. The unit will alarm, and no AC output when relay temperature is up to 75±5℃; But it will auto recover when the relay temperature drops to normal value.
Fuse: Internal  USB port  5V, 2.1A
Working Temperature: -10°C--+50°C Product Size 330×150×78mm
Storage Temperature: -30°C--+70°C Packing Size 40.5×22×13.5cm
Warranty: 18 months N.W. / G.W. (KG) 2.6KG/3.2KG
Start: Bipolar soft-start Quantity / Carton 6pcs
Cooling Way: Intelligent cooling fan Carton Size 45×42×43cm
Certification: CE, E-mark, FCC Carton Weight 20.0KG
