2000W Bi-directional inverter charger
  • 2000W Bi-directional inverter charger
  • 2000W Bi-directional inverter charger
  • 2000W Bi-directional inverter charger
  • 2000W Bi-directional inverter charger
  • 2000W Bi-directional inverter charger
Bi-directional Inverter Charger

2000W Bi-directional inverter charger

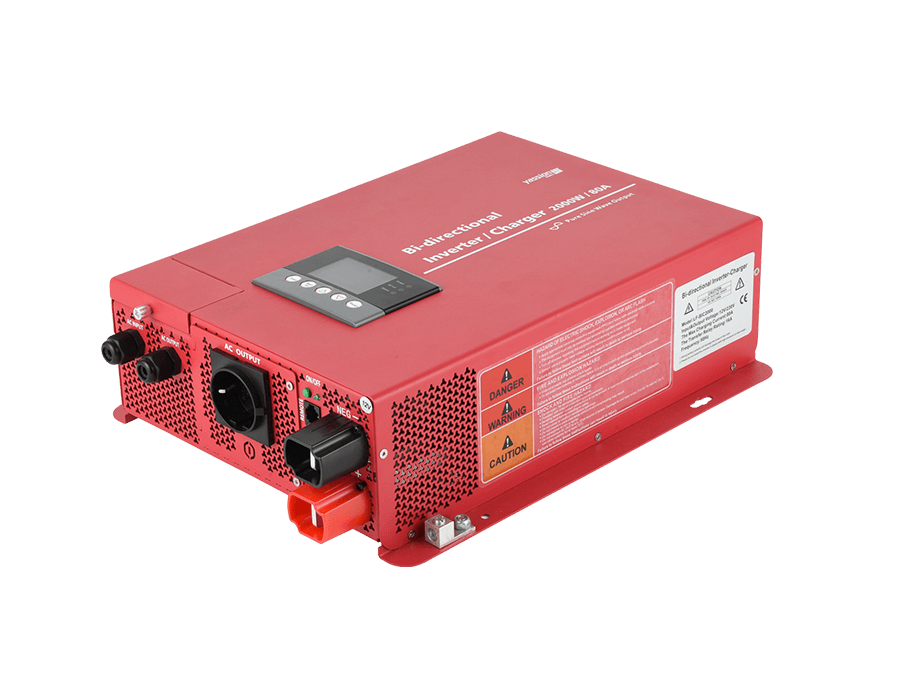

2000W Bi-directional Inverter Charger

● 2000W continuous pure sine wave power and 4000W surge power

● The max charging current of 12V 2000W is 80A

● Ultra-clean pure sine wave power. With less than 3% total harmonic distortion.

● The inverter will quickly switch between city power and battery power automatically.

● When connected to shore power, power passes through the inverter directly to the loads and can be used to recharge batteries.

● LED display shows the DC voltage, AC voltage, output power, battery capacity and some protection codes when the unit is in protection mode.

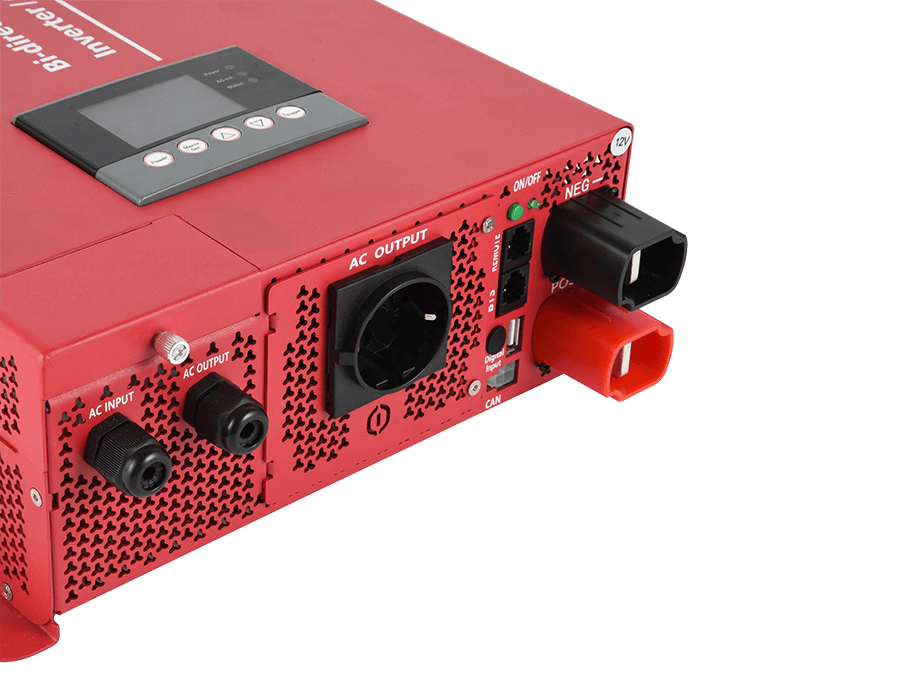

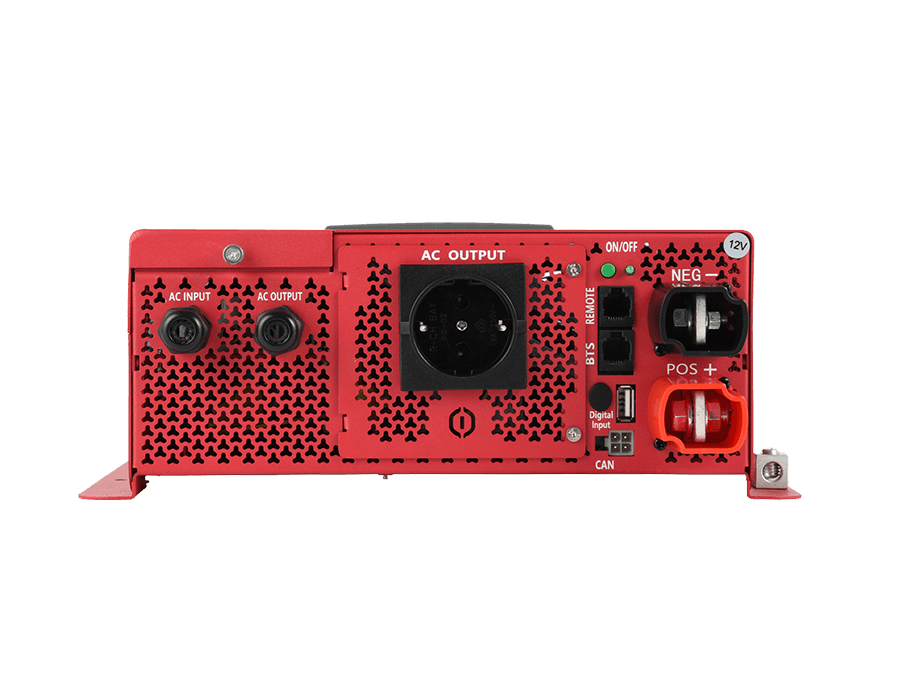

● It includes a CAN-BUS port, BTS port, program USB port, ignition port and remote port.

● 2 years warranty.



What you will get

A 2000w Bi-directional inverter charger and a user manual.

Contact Now Catalogue Download

Description

2000W Bi-directional Inverter Charger
SPECIFICATIONS 12V model 24V model 48V model 12V model 24V model 48V model
120V model 230V model
Inverter
 Continuous AC Output Power 2000W
  AC Output Current 16.7A max 8.7A max
  AC Surge Power (Peak) 4000W
  AC Output Voltage/Frequency 110-130 VAC / 60 Hz 220-240 VAC / 50 Hz
  AC Output Waveform(THD) 5%  max ,2.5% typical
  Nominal DC Input Voltage 12.5 VDC 25 VDC 50 VDC 12.5 VDC 25 VDC 50 VDC
  DC Input Voltage operating range 10.5 – 16.0 VDC 21 – 32 VDC 42 – 63 VDC 10.5 – 16.0 VDC 21 – 32 VDC 42 – 63 VDC
   Efficiency            90% typical 94% typical            91% typical 94% typical
AC Transfer Switch
Nominal AC transfer time – utility to inverter <30ms (delayed as required by voltage decay of active load)
Nominal AC transfer time – inverter to utility <20ms
   Transfer Relay Rating 30A 16A
   AC Input Source Setting 15, 20, 30A 10, 13, 16A
   AC Output Port 1 (AC Socket) GFCI(20A) EU: CEE 7/4 (16A)
UK: BS1363  (13A)
AU: AS/NZS 3112 (10A)
   AC Output Port 2 (Hard Wire Connector) 30A max 16A max
Display
Display Panel Port RJ12
Inverter Mode Input Voltage, Output Power，Output Voltage
Charger Mode Status & Battery voltage，Input Power，Current
CAN-BUS Control By CANBUS
Remote Panel By Remote
Charger
Charger input operating range (full power) 95-135Vac (105-130Vac) 190-270 Vac (210-260Vac)
   Charging Voltage Range 13.5 - 14.8 VDC 27-29.6V 54-59.2V 13.5 - 14.8 VDC 27-29.6V 54-59.2V
   Charger Current (max) 80A 40A 30A 80A 40A 30A
   Charger Current Setting 10-80A 5-40A 5-30A 10-80A 5-40A 5-30A
   Battery Type Gel, Flooded, AGM, Lithium, use, Power Supply
   Charge Control Bulk / Absorption / Float / Recharge
Maintenance Recharge Cycle 7 days
   Efficiency            90% typical 93% typical            91% typical 93% typical
Safety and Environmental
   Approval cETLus CE
   Safety UL 458, CSA C22.2 No.
107.2-01		 EN 60204-1 & IEC 61558-2-16
   EMC FCC Part 15 Class B EN 62040-2 Category C2
   Operating Temperature 0°C to 50°C
   Storage Temperature -20°C to 60°C (-4°F to 140°F)
   Relative Humidity 5-90% noncondensing
   Operating Altitude Up to 9,843ft (3000m) above sea level
Weights and Dimensions
   Weights 6.4kg
   Dimensions L X W X H 396mm X 297mm X 110mm
