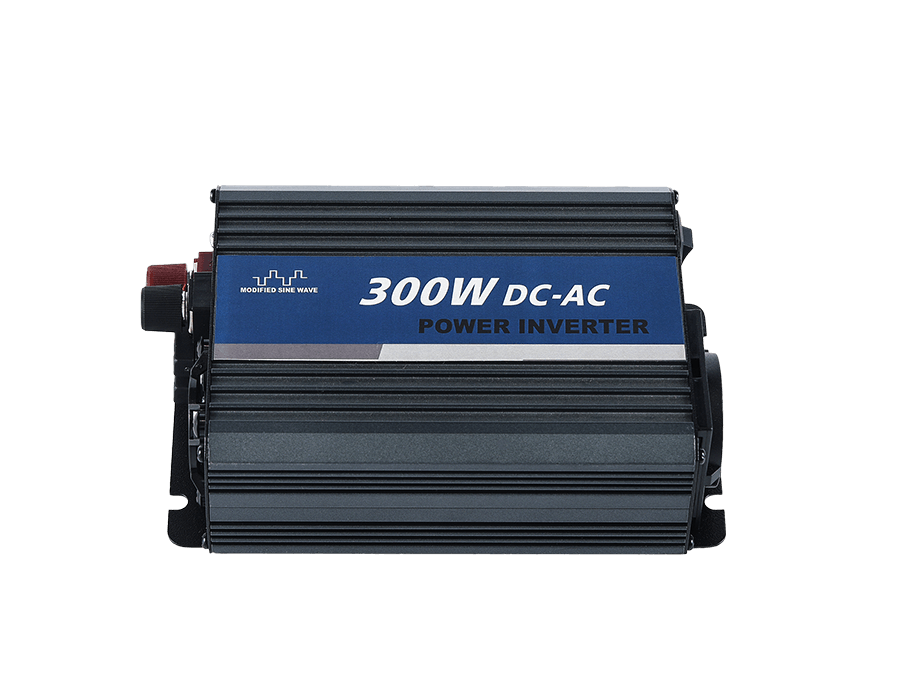

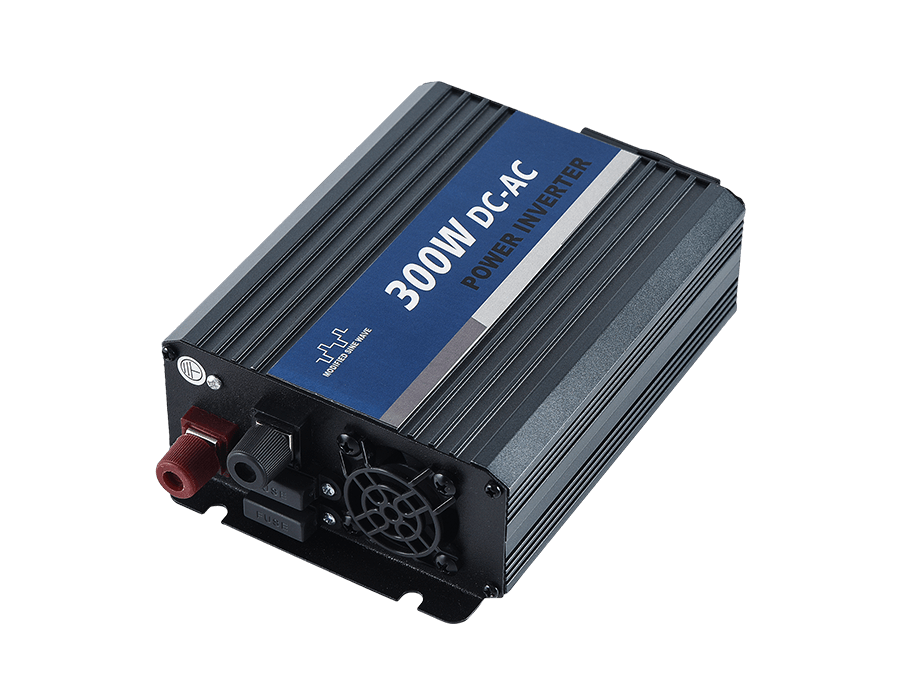

300W High Frequency Modified Sine Wave Car Power Inverter
  • 300W High Frequency Modified Sine Wave Car Power Inverter
  • 300W High Frequency Modified Sine Wave Car Power Inverter
  • 300W High Frequency Modified Sine Wave Car Power Inverter
Modified Sine Wave Inverter

300W High Frequency Modified Sine Wave Car Power Inverter

300W Modified Sine Wave Inverter

● 300W Continuous modified sine wave power and 600W surge power.

● All-Round Protection: this inverter has all the protections that you will need: overload, over voltage, under voltage, high temperature and short circuit Protections.

● Powerful Cooling Fan: Built-in Powerful Cooling fans helps reduce heat, keep the inverter running safely and effectively at a low temperature, avoid overheat and prevents shortages.

● 12 months warranty.

What you will get

A 300w modified sine wave inverter, 2x battery cables (black and red), a user manual and a set spare fuses.

Contact Now Catalogue Download

Description

The user manual of modified sine wave inverters

300W High Frequency Modified Sine Wave Car Power Inverter can provide 300W continuous modified sine wave output power, and the instantaneous peak power can reach 600W. This powerful performance enables it to easily meet the power access needs of a variety of devices, ensuring stable power supply in various usage scenarios.
In order to ensure the safety of users and equipment, the inverter adopts multiple protection designs, including overload protection, overvoltage protection, undervoltage protection, high temperature protection and short circuit protection. These safety measures effectively prevent equipment damage and safety hazards caused by power anomalies, providing users with all-round safety protection.
The inverter is compact in size, easy to carry and install, and does not take up too much space in the vehicle. This feature allows users to use the device more flexibly when engaging in outdoor activities or long-distance travel, improving the convenience of use.
How to use:
Before connecting the car inverter, be sure to ensure that the vehicle is in the off state to prevent circuit short circuit and equipment damage. When connecting electronic equipment that needs power, pay special attention to whether the power of the equipment is within the rated power range of the inverter (300W and below). After turning on the inverter switch, observe whether the power-on indicator light is on to confirm that the device is working properly.
During use, keep the inverter well ventilated and avoid placing it in a closed space or covering it with other objects to prevent overheating. After use, turn off the inverter switch in time and disconnect it from the battery to ensure safety.

INVERTER SPECIFICATIONS-300W
Model: YX-300-M
Output Waveform: Modified Sine Wave
Continuous Power: 300W
Peak Power: 600W
Frequency: 50Hz/60Hz
Efficiency: Up to 89%
Input Voltage: DC12V DC24V DC48V
10-15.5V 20-31V 40-61V
Low Voltage Protection: 10±0.5V 20±1V 40±1V
Over Voltage Protection: 15.5±0.5V 31±1V 61±1V
Output Voltage: 100V/110V/115V/120V/220V/230V/240V
No Load Current Draws: <0.5A
Cooling Fan: Temperature and load controlled
Dimensions(L*W*H): 185*120*52mm
Net Weight: 0.83 ± 0.2kgs
Protection Function: Low voltage shut down protection
Over input voltage protection
Over temperature protection
Over load protection
Short circuit protection
Reverse polarity protection (Fuse)
LED Indicator Light: Green LED for power on
Red LED for fault status
Fuse: External
USB Port: 5V, 2A
Application: Automobiles, RVs, boats, tractors, turcks, laptops, TV sets, video games, Cdplayers, DVD players, power tool, office equipment, major household appliances, etc.
Environment: Operating temperature: 0°C--+40°C @ 100% load;    ≥ +60°C @ 50% load
Operating relative humidity:20%--90% RH non-condensing
Storage temperature:-30°C--+70°C
Cooling Fan automatically run:inner temperature rising up is ≥45°C, or load power is rising up  ≥ 30%
Accessories: one pair of 70CM battery cables
1 x instruction manual
1 x replaceable fuse
Certificate: CE approved
