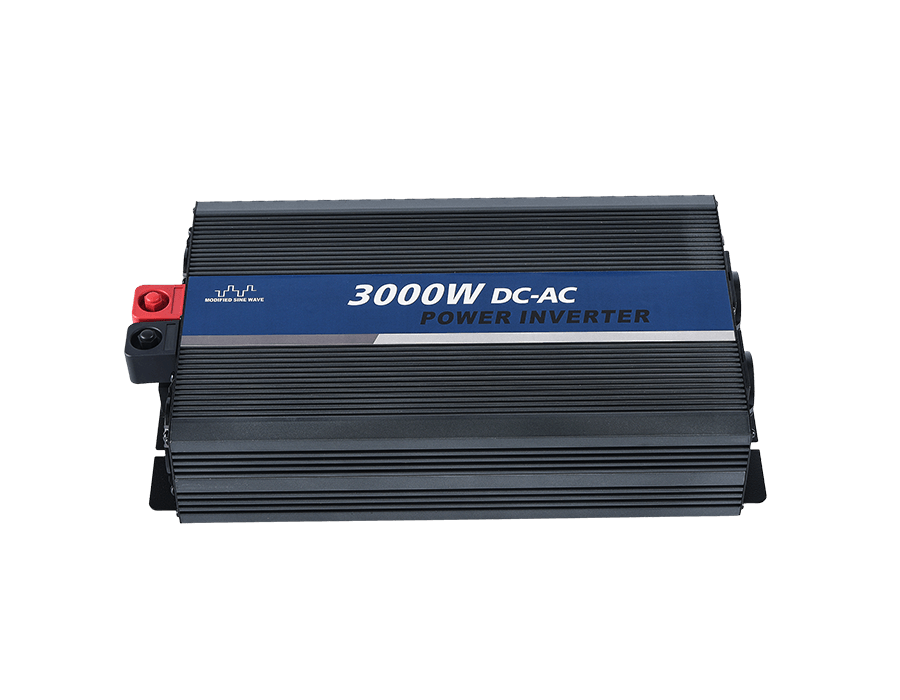

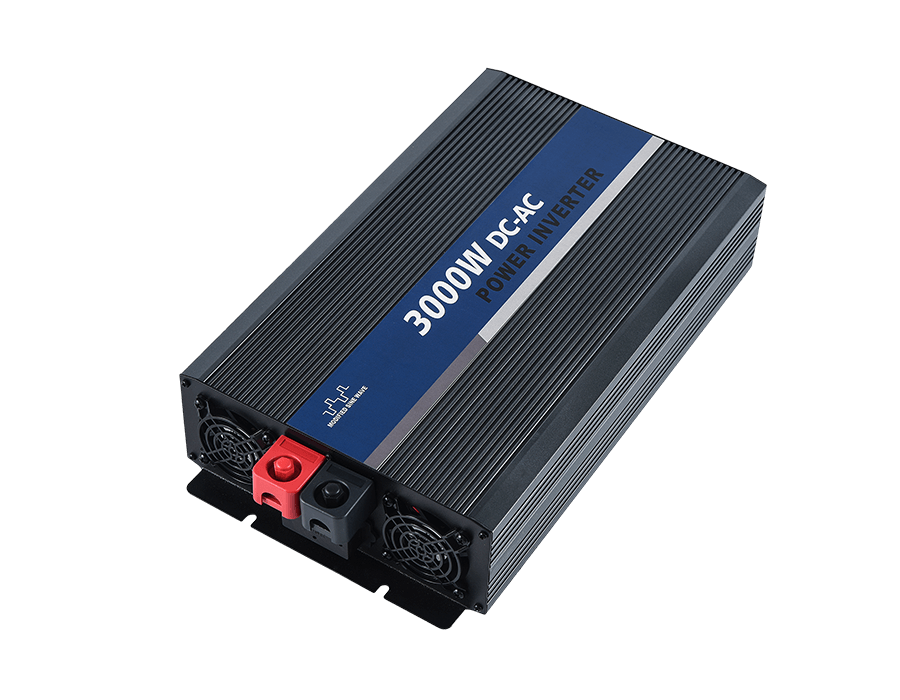

3000W Modified Sine Wave Inverter
  • 3000W Modified Sine Wave Inverter
  • 3000W Modified Sine Wave Inverter
  • 3000W Modified Sine Wave Inverter
Modified Sine Wave Inverter

3000W Modified Sine Wave Inverter

3000W Modified Sine Wave Inverter

● 3000W Continuous modified sine wave power and 6000W surge power.

● All-Round Protection: this inverter has all the protections that you will need: overload, over voltage, under voltage, high temperature and short circuit Protections.

● Powerful Cooling Fan: Built-in Powerful Cooling fans helps reduce heat, keep the inverter running safely and effectively at a low temperature, avoid overheat and prevents shortages.

● 12 Months warranty.

What you will get

A 3000w modified sine wave inverter, 2x battery cables (black and red), a user manual and a set spare fuses.

Contact Now Catalogue Download

Description

The user manual of modified sine wave inverters

INVERTER SPECIFICATIONS-3000W
Model: YX-3000-M
Output Waveform: Modified Sine Wave
Continuous Power: 3000W
Peak Power: 6000W
Frequency: 50Hz/60Hz
Efficiency: Up to 90%
Input Voltage: DC12V DC24V DC48V
10-15.5V 20-31V 40-61V
Low Voltage Protection: 10±0.5V 20±1V 40±1V
Over Voltage Protection: 15.5±0.5V 31±1V 61±1V
Output Voltage: 100V/110V/115V/120V/220V/230V/240V
No Load Current Draws: ＜1.2A
Cooling Fan: Temperature and load controlled
Dimensions(L*W*H): 410*220*80mm (12V) / 390*220*80mm (24V)
Weight: 6.2 ± 0.2kgs (12V) / 5.6 ± 0.2kgs (24V)
Protection Function: Low voltage shut down protection
Over input voltage protection
Over temperature protection
Over load protection
Short circuit protection
Reverse polarity protection (Fuse)
LED Indicator Light: Green LED for power on
Red LED for fault status
Fuse: External
Application: Automobiles, RVs, boats, tractors, turcks, laptops, TV sets, video games, Cdplayers, DVD players, power tool, office equipment, major household appliances, etc.
Environment: Operating temperature: 0°C--+40°C @ 100% load;    ≥ +60°C @ 50% load
Operating relative humidity:20%--90% RH non-condensing
Storage temperature:-30°C--+70°C
Cooling Fan automatically run:inner temperature rising up is ≥45°C, or load power is rising up  ≥ 30%
Accessories: One pair of 70CM battery cables
1 x instruction manual
12 x replaceable fuses
Certificate: CE approved
