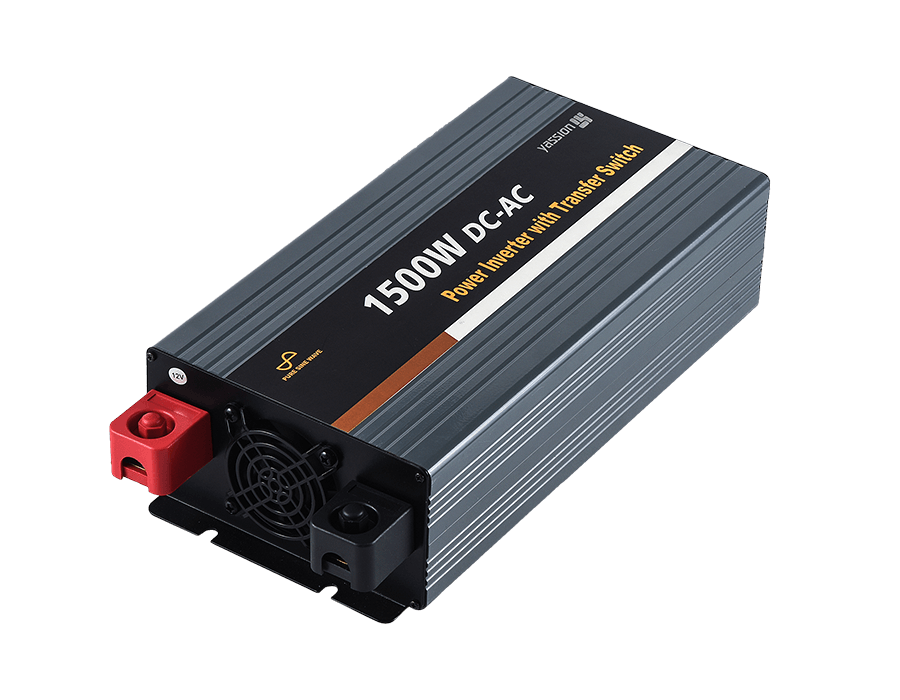

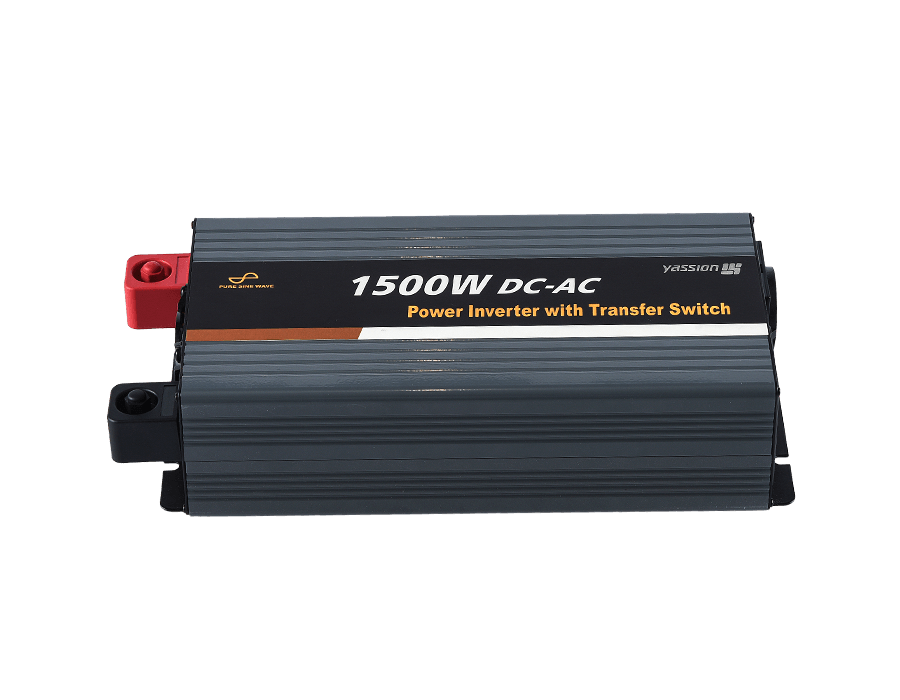

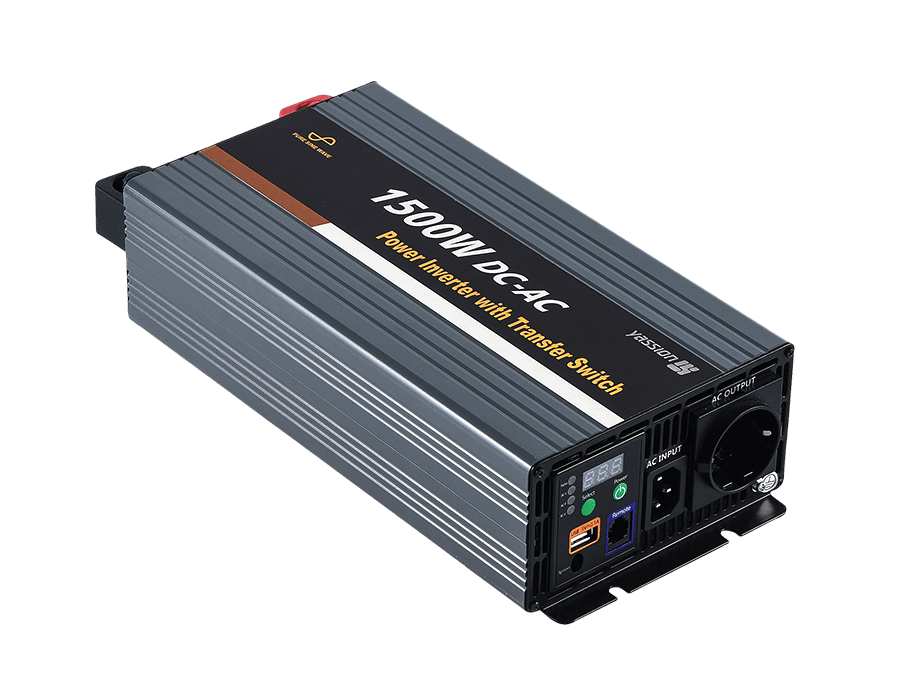

1500W Pure sine inverter with transfer switch

1500W Pure sine wave inverter with transfer switch

● 1500W Continuous pure sine wave power and 3000W surge power.

● Ultra- clean pure sine wave power. With less than 3% total harmonic distortion.

● The inverter will quickly switch between city power and battery power automatically with the included 16A transfer switch.

● The inverter is lighter and more compact than others with similar power ratings because they use high-frequency switching technology in the power conversion process.

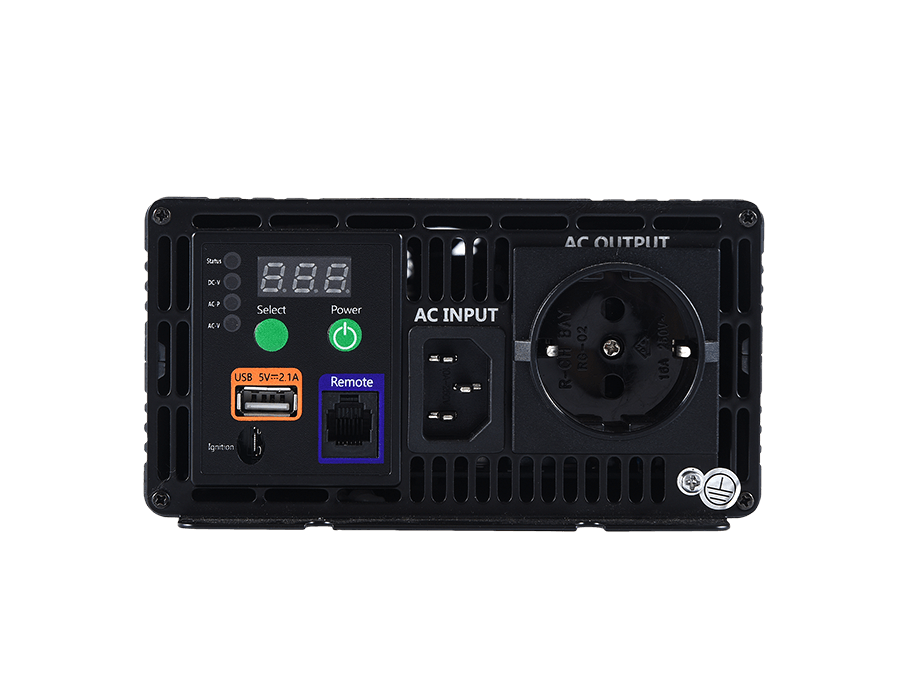

● Digital display shows the DC voltage, AC voltage, output power and some protection codes when inverter is in protection mode.

● 18 Months warranty.

Protecion Features

● Over voltage and under voltage protection

● Over temperature and over load protection

● Short circuit and reverse polarity protection

What you will get

A 1500w pure sine inverter with transfer switch, 2x battery cables (black and red), an AC cable with plug , a user manual, A car ignition port and a set spare fuses.

Contact Now

Catalogue Download

Model:	YX-1.5KUS-1-1		YX-1.5KUS-2-1		YX-1.5KUS-1-2		YX-1.5KUS-2-2
Continuous Power:	1500W
Peak Power:	2900W
DC Voltage:	DC12V		DC24V		DC12V		DC24V
AC Voltage:	100VAC or 110VAC or 120VAC ± 3V				220VAC or 230VAC or 240VAC ± 3V
No Load Current Draws:	1A		0.5A		1A		0.5A
Max AC Input Current:	12.5A				6.5A
DC Voltage Range:	10-15.5V		20-31V		10-15.5V		20-31V
Low Voltage Alarm:	Lo0:10.5V	11V±0.3V	Lo0:21V	22V±0.3V	Lo0:10.5V	11V±0.3V	Lo0:21V	22V±0.3V
	Lo1:10.8V	11.3V±0.3V	Lo1:21.6V	22.6V±0.3V	Lo1:10.8V	11.3V±0.3V	Lo1:21.6V	22.6V±0.3V
	Lo2:11.3V	11.8V±0.3V	Lo2:22.6V	23.6V±0.3V	Lo2:11.3V	11.8V±0.3V	Lo2:22.6V	23.6V±0.3V
Low Voltage Shut Down:	Lo0:10.5V	10.5V±0.3V	Lo0:21V	21V±0.3V	Lo0:10.5V	10.5V±0.3V	Lo0:21V	21V±0.3V
	Lo1:10.8V	10.8V±0.3V	Lo1:21.6V	21.6V±0.3V	Lo1:10.8V	10.8V±0.3V	Lo1:21.6V	21.6V±0.3V
	Lo2:11.3V	11.3V±0.3V	Lo2:22.6V	22.6V±0.3V	Lo2:11.3V	11.3V±0.3V	Lo2:22.6V	22.6V±0.3V
Low Voltage Alarm Recovery:	Lo0:10.5V	11.3V±0.3V	Lo0:21V	22.6V±0.3V	Lo0:10.5V	11.3V±0.3V	Lo0:21V	22.6V±0.3V
	Lo1:10.8V	11.6V±0.3V	Lo1:21.6V	23.2V±0.3V	Lo1:10.8V	11.6V±0.3V	Lo1:21.6V	23.2V±0.3V
	Lo2:11.3V	12.1V±0.3V	Lo2:22.6V	24.2V±0.3V	Lo2:11.3V	12.1V±0.3V	Lo2:22.6V	24.2V±0.3V
Low Voltage Protection Recovery:	Lo0:10.5V	12V±0.3V	Lo0:21V	24V±0.3V	Lo0:10.5V	12V±0.3V	Lo0:21V	24V±0.3V
	Lo1:10.8V	12.3V±0.3V	Lo1:21.6V	24.6V±0.3V	Lo1:10.8V	12.3V±0.3V	Lo1:21.6V	24.6V±0.3V
	Lo2:11.3V	12.8V±0.3V	Lo2:22.6V	25.6V±0.3V	Lo2:11.3V	12.8V±0.3V	Lo2:22.6V	25.6V±0.3V
Over Voltage Shut Down:	15.7V±0.3V		31.5V±0.3V		15.7V±0.3V		31.5V±0.3V
Over Voltage Recovery:	15.3V±0.3V		30.6V±0.3V		15.3V±0.3V		30.6V±0.3V
Frequency:	50HZ ± 0.5HZ or 60HZ ± 0.5HZ
Output Waveform:	Pure Sine Wave
AC Regulation:	THD<3% (Linear load)
Output Efficiency:	Up to 90%
Transfer relay Rating:	16A
Transfer time AC to inverter and inverter to AC:	Less than 30ms
Remote Control (Optional):	Cable length: 15m is available.
Power-Saving Mode:	The power saving mode will be activated when the output power is less than 5W. When output power is more than 10W, the inverter will automatically return to normal status.
Ignition Function:	Connect vehicles battery (or connect positive pole of vehicles' STARTER). The inverters start simultaneously When the vehicles start; The inverters will shut down meantime when the vehicles shut down.
Protection Function:	Low voltage alarm			code: F05	Buzzer sounds and fault light turns red
	Low voltage shutdown			code: F01	Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.)
	Over input voltage protection			code: F02	Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.)
	Over load alarm			code: F06	Buzzer sounds and fault light turns red when output power is overloaded around 110%. But the BUZZ and F06 code will not occured when the output power drop to a normal level within 20ms.
	Over load protection			code: F03	The inverter shutdown when output power is overloaded around 120%, it need to be recovered by hand.
	Over temperature alarm			code: F07	Buzzer sounds and fault light turns red when the inverter's internal temperature is higher than the limit value (90±5℃).
	Over temperature protection			code: F04	The inverter will automatically return to normal status when the internal temperature drops to 80±5℃.
	Short circuit protection			code: F03	Recover by hand
	Reverse polarity protection				Built-in fuse
	AC input overload protection			code: F09	The fan will start to work when the relay temperature is up to 60±5℃; but it will stop to work when the relay temperature drops to 50±5℃. The unit will alarm, and no AC output when relay temperature is up to 75±5℃; But it will auto recover when the relay temperature drops to normal value.
Fuse:	Internal			USB port		5V, 2.1A
Working Temperature:	-10°C--+50°C			Product Size		330×150×78mm
Storage Temperature:	-30°C--+70°C			Packing Size		40.5×22×13.5cm
Warranty:	18 months			N.W. / G.W. (KG)		2.6KG/3.2KG
Start:	Bipolar soft-start			Quantity / Carton		6pcs
Cooling Way:	Intelligent cooling fan			Carton Size		45×42×43cm
Certification:	CE, E-mark, FCC			Carton Weight		20.0KG
