Modified Sine Wave Inverter

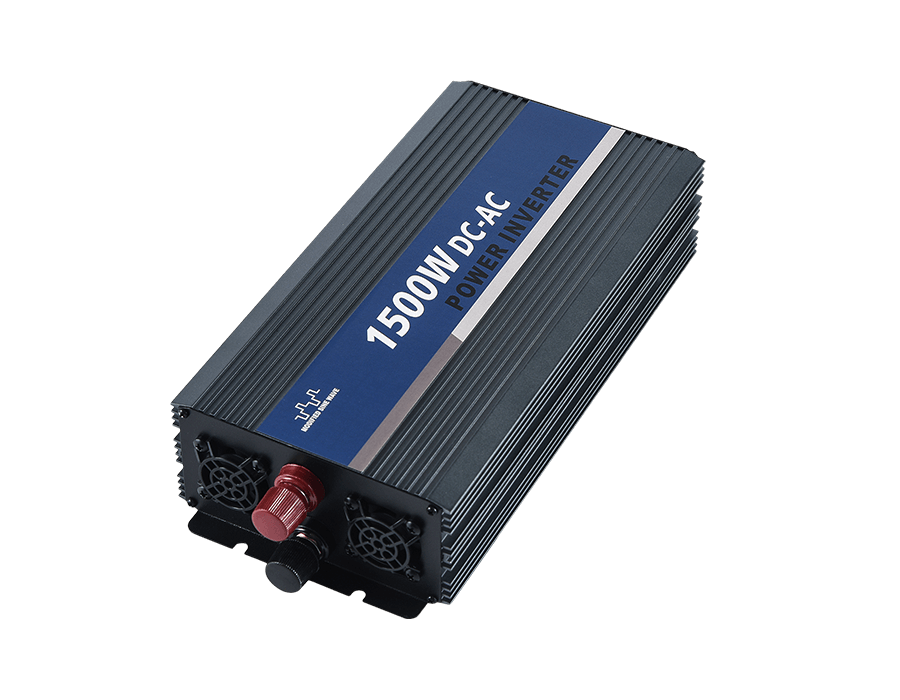

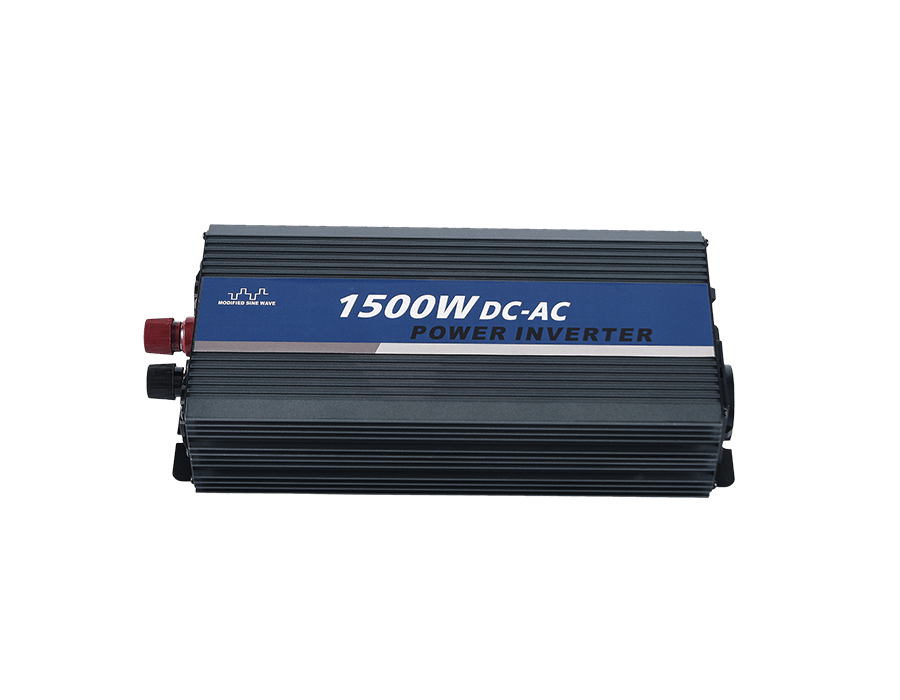

1500W Modified Sine Wave Inverter

1500W Modified Sine Wave Inverter

● 1500W continuous modified sine wave power and 3000W surge power.

● All-Round Protection: this inverter has all the protections that you will need: overload, over voltage, under voltage, high temperature and short circuit Protections.

● Powerful Cooling Fan: Built-in Powerful Cooling fans helps reduce heat, keep the inverter running safely and effectively at a low temperature, avoid overheat and prevents shortages.

● 12 months warranty.

What you will get

A 1500w modified sine wave inverter, 2x battery cables (black and red), a user manual and a set spare fuses.

Contact Now

Catalogue Download

Description

The user manual of modified sine wave inverters

INVERTER SPECIFICATIONS-1500W
Model:	YX-1500-M
Output Waveform:	Modified Sine Wave
Continuous Power:	1500W
Peak Power:	3000W
Frequency:	50Hz/60Hz
Efficiency:	Up to 90%
Input Voltage:	DC12V	DC24V	DC48V
	10-15.5V	20-31V	40-61V
Low Voltage Protection	10±0.5V	20±1V	40±1V
Over Voltage Protection:	15.5±0.5V	31±1V	61±1V
Output Voltage:	100V/110V/115V/120V/220V/230V/240V
No Load Current Draws:	＜0.7A
Cooling Fan:	Temperature and load controlled
Dimensions(LWH):	34015070mm
Weight:	2.8 ± 0.2kgs
Protection Function:	Low voltage shut down protection
	Over input voltage protection
	Over temperature protection
	Over load protection
	Short circuit protection
	Reverse polarity protection (Fuse)
LED Indicator Light:	Green LED for power on
	Red LED for fault status
Fuse:	Internal
USB Port:	5V, 2A
Grounding:	Ground Chassis: Properly grounds the Inverter to vehicle grounding system or to earth ground.
Application:	Automobiles, RVs, boats, tractors, turcks, laptops, TV sets, video games, Cdplayers, DVD players, power tool, office equipment, major household appliances, etc.
Environment:	Operating temperature: 0°C--+40°C @ 100% load; ≥ +60°C @ 50% load
	Operating relative humidity:20%--90% RH non-condensing
	Storage temperature:-30°C--+70°C
	Cooling Fan automatically run:inner temperature rising up is ≥45°C, or load power is rising up ≥ 30%
Accessories:	One pair of 70CM battery cables
	1 x instruction manual
	6 x replaceable fuses
Certificate:	CE approved

PREV
2000W Modified Sine Wave Inverter

NEXT

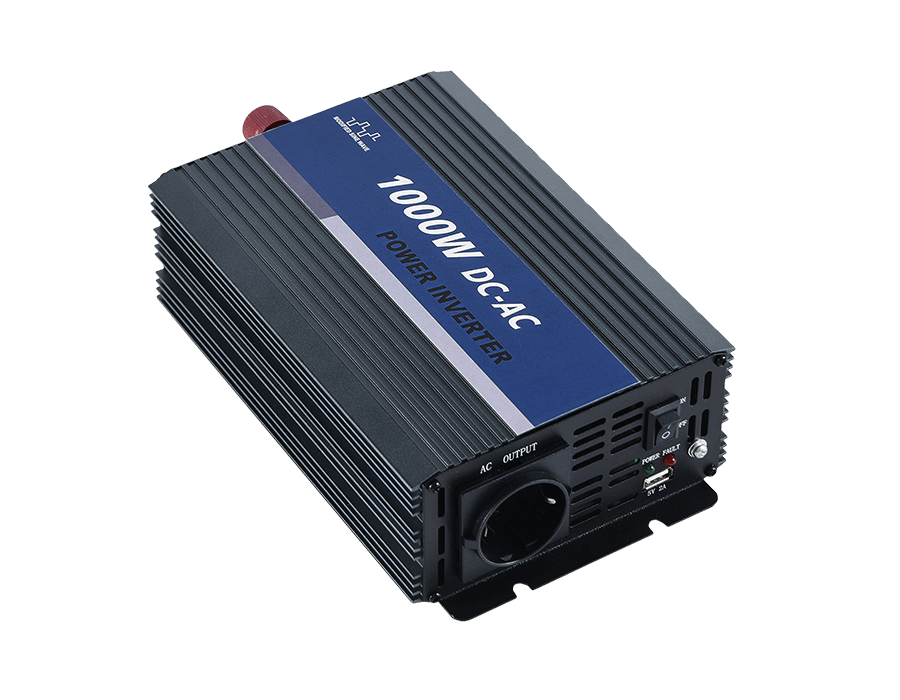

1000W Modified Sine Wave Inverter
